Stampwell Larvea 2

Description

Stampwell stamps imprint arrays of wells in hydrogels in just one time. Nothing more to do than load your samples into the wells and image. 4 different stamnps according to positioning and size of the fish.

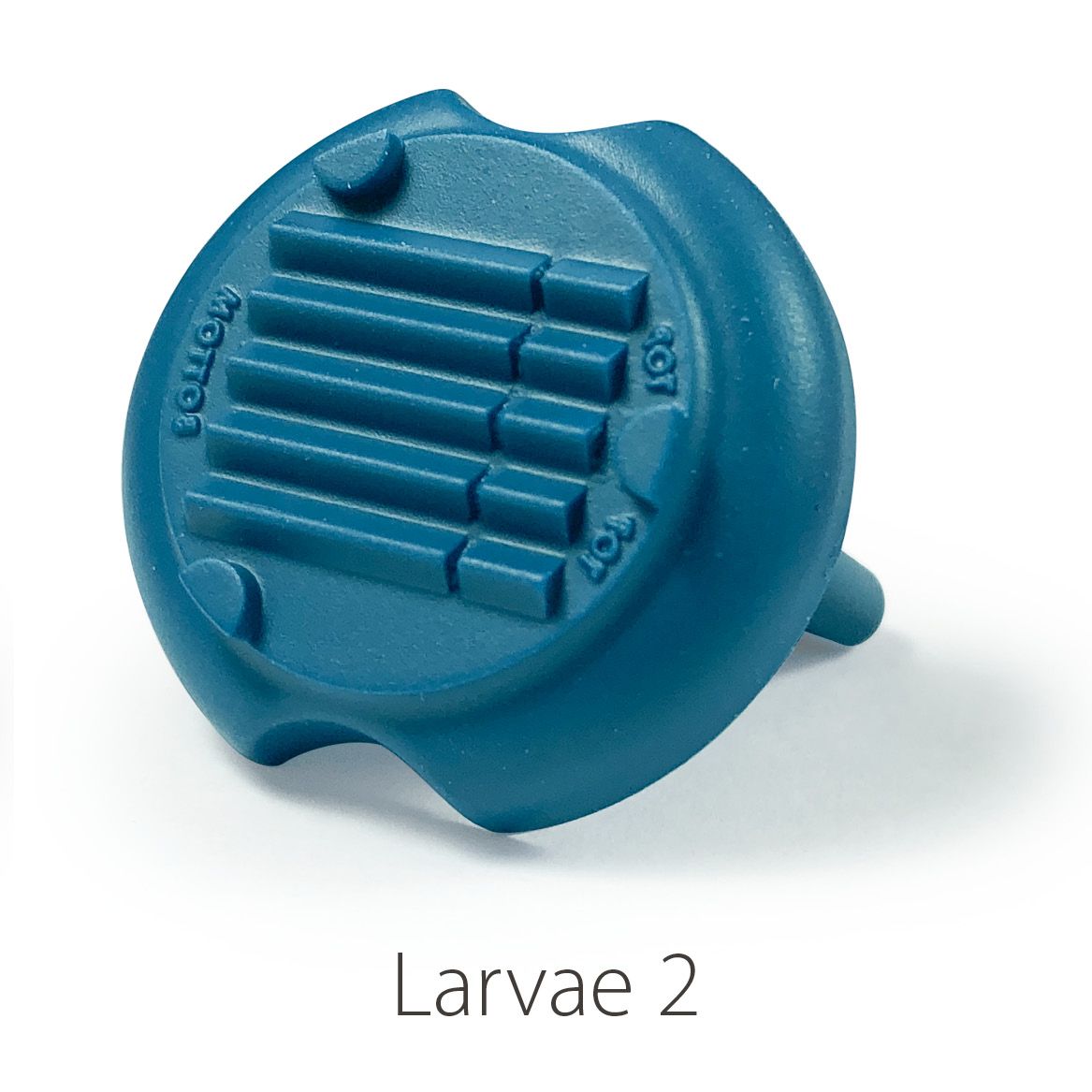

Larvae 2:
• Shape of the wells: Triangular (Prism)
• Material : PU
• Depth of the wells: 1 mm
• Dimensions of the base of the wells: 2 mm
• Dimensions of the end of the wells: 0.3 mm​
• Length of the 5 large wells: 10 mm
• Length of the 5 small wells: 3 mm
• Number of pins: 5 large wells ideal for the 15-20 dpf zebrafish or 39-42 dpf medaka larvae + 5 small wells ideal for the 1-2 dpf zebrafish

Key features:
1. Save time: no need to manually position your samples individually. Fish embryos/larvae will self-position in the wells.
2. Boost your assay reproducibility: once loaded in the wells, your samples are perfectly positioned, aligned and located on a similar focal plane.
3. Open system: direct access to embryos/larvae for adding external compounds (i.e. drug screening).
4. User-friendly and economic, easy to handle and usable dozens of times
4. Compatible with a wide variety of hydrogels
5. Easy to keep track of samples located with their alpha-numerical register mark

A technology designed by​ Gaëlle Recher
Powered by the Mount(n) technology (UniverSlide) published in Scientific Reports
